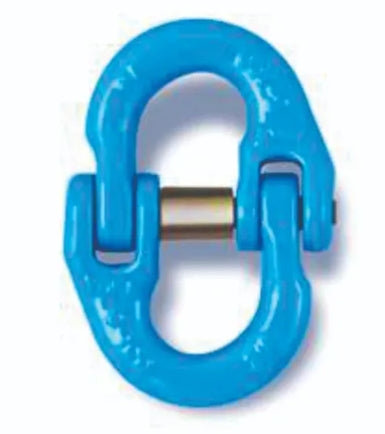

Yoke 3/4" Grade 100 Connecting Link - WLL 35,300 lbs.

The YOKE 3/4” Grade 100 Connecting Link is built for demanding lifting and rigging applications, offering a Working Load Limit (WLL) of 35,300 lbs (16.00 tons). Designed for heavy-duty performance, it provides over 25% more strength than comparable Grade 80 connecting links.

Manufactured from quenched and tempered alloy steel, this connecting link delivers excellent durability, reliability, and long service life in tough industrial environments. It is proof tested to 2.5 times the working load limit for added safety and is fatigue rated for 20,000 cycles at 1.5 times the WLL.

Compatible with both Grade 80 and Grade 100 chain systems, the YOKE Grade 100 Connecting Link is ideal for overhead lifting, sling assemblies, and rigging applications requiring high strength and dependable performance.

Key Features:
• Working Load Limit: 35,300 lbs (16.00 tons)
• Over 25% stronger than Grade 80 connecting links
• Made from quenched and tempered alloy steel
• Proof load tested to 2.5 times WLL
• Fatigue rated for 20,000 cycles at 1.5 times WLL
• Compatible with Grade 80 and Grade 100 chains
• Design Factor: 4:1
