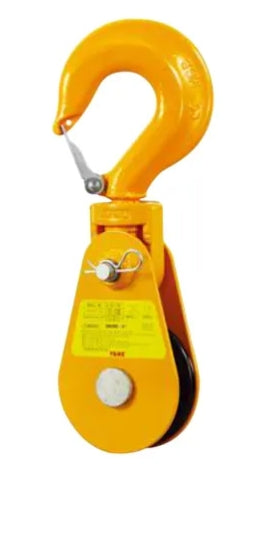

Yoke 8" Sheave Alloy Snatch Block with Hook - WLL 12 tons

The YOKE 8” Sheave Alloy Snatch Block with Hook is built for heavy-duty lifting and rigging applications, offering a 12-ton Working Load Limit (WLL). Manufactured from high-strength alloy steel, it features an 8” sheave designed to accommodate wire rope sizes from 19mm to 22mm (3/4” to 7/8”).

Designed for smooth and reliable operation, this snatch block includes bronze bushings with pressure lube fittings to help reduce wear and improve performance in demanding environments. The block is fatigue rated and built with a 4:1 safety factor for dependable lifting performance.

For easy identification and traceability, each unit is marked with the part number, wire rope size, and working load limit. It also includes an embedded digital chip for quick access to certification and serial tracking information.

The YOKE Alloy Snatch Block meets ASME B30.26 standards and is ideal for industrial lifting, rigging, and material handling operations.

Key Features:
• Working Load Limit: 12 tons
• Sheave Diameter: 8”
• Wire Rope Capacity: 19mm – 22mm (3/4” – 7/8”)
• Material: High-strength alloy steel
• Bronze bushings with pressure lube fittings
• Fatigue rated with 4:1 safety factor
• Marked with part number, rope size, and WLL
• Embedded digital chip for serial traceability
• Meets ASME B30.26 standards
